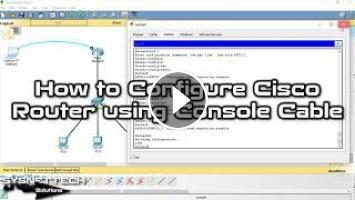

How to Configure Cisco Router using Console Cable in Cisco Packet Tracer | SYSNETTECH Solutions

This video shows you the steps to configure a Cisco Router with consol cable using Cisco Packet Tracer.

✅ S U B S C R I B E ► http://goo.gl/8d0iG9
✅ Article ► https://www.sysnettechsolutions.com/en/connect-to-cisco-router-console-in-cisco-packet-tracer/

To make a #console connection to the #router:

Step 1: First, add a Cisco Router, Switch, and three computers to the Packet Tracer working environment.

Step 2: Connect all computers to the Switch and connect the Switch to the Router.

Step 3: Now add a Laptop near the Router.

Step 4: Click on Console in Packet Tracer's cable types window and then connect one end of the #cable to the RS 232 port after clicking the
Laptop. Connect the other end to the Console port of the Router.

Step 5: Click on Laptop and click Terminal in the window that appears.

Step 6: Leave the Bits Per Second, Data Bits, Parity, Stop Bits, and Flow Control options at the default value in the Terminal Configuration window and click the OK button.

Step 7: Answer No to the first question asked to you when you connect to the Router on the laptop.

Step 8: After connecting, assign an IP address to the GigabitEthernet0 / 0 interface of the Router, which is connected to the Switch, and open the port.

Step 9: Now execute the password cisco123 and login command after the line console 0 command in config mode to set a password for the Console connection to prevent unauthorized access to the Router.

Step 10: Exit from the CLI with the exit command, and when you connect to the Router again, you can see a password prompt.

Step 11: You can use the show line command in privileged mode to control the sessions connected to the router.

Step 12: For example, you can create a DHCP pool on a router that you connect with a console cable. To do this, you can use the commands in the 4:05 timeframe.

Step 13: Do not forget to subscribe to our YouTube channel for more videos on Cisco Networking training with Packet Tracer!
