Cisco 2960G Switch teardown an detailed overview for CCNA lab and repair -Part2

247 Views
Published

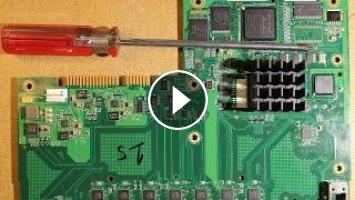

Complete tear-down and overview of a Cisco 2960G gigabit switch for CCNA candidates and also for IT repair technicians.

At the first half of the video I go over the main components which are the Flash, NVRAM, Route-Processor and ASIC from the perspective of a CCNA. On the CCNA exam you do not need to know such details, but it helps you to be able to visualize the data flow, and to give you a rough idea about the hardware.

In the secon half of the video I go over the mainboard components in deep detail, and explain their functionality within the Switch. This part is going way beyond CCNA, instead it caters for component-level repair technicians.
If you are interested in the disassembly and the PSU, watch Part1 of this video series:
www.youtube.com/watch?v=HJLqF7Gg5WQ

Some portions of ot the video got lost because of the Kdenlive Linux video editor, sorry for the choppy video.

Parts list for the Mainboard discussed in the video:
====================================
Route Processor: Cisco Yeti2 (IBM Power-PC 405 core + FPGA)
Flash: Intel TE28F128
NVRAM: Flash emulated (no dedicated chip)
RAM: Micron 46V32M16 64MB DDR modul
TCAM table: Renases R8A20300ABG
ROMMON I could not find the chip holding the boot-ROM
Serial Console: MB3232I
ASIC from Cisco


Parts list for the other components:
====================================
U67 IR 0901 A6P3N6 (is there a datasheet?)
U76=U77 Maxim 8566E
U67=U66 Maxim 8643E
U64 ISL8700IBZ
U46=U61=U2 SN74LVC245A
U70=U32=U33=U34 SN54HC595
U7=U83 P149FCT20807HE
U81 ADTT75A
U6 CY2CC8100-XT1
U84 UD8808265 (is there a datasheet?)
U54=U53 SN74LVC126A
Q20 NE47810S DDR Double Data Rate linear regulator
U14 MB3232I
U82=U68=U69=U47=U48 7Z25L = NC7SZ125M5X
