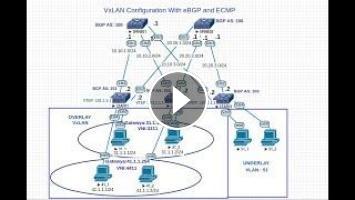

This video series demonstrate how to configure VXLAN in Arista with BGP and ECMP as the underlay.
Part 1 : https://youtu.be/7mhqa4cm-5w
Part 2 :https://youtu.be/tiAGOTdaikk
Part 3 :https://youtu.be/96bjU4iuveM
----------------------------------------------------------------
Part 1 shows BGP underlay network and testing of highavalability in case of single spine failure or any link failure.
Part 2 shows how to configure VXLAN in multiple Leaf switches , configure VNI, assign ports to the VLAN,configure peer VTEPS for host replicationand extend Layer 2 over layer 3 in multiple leaf switches
Part 3 shows how to configure VXLAN gateway and routing between underlay and overlay. Shows direct VXLAN routing config using "ip address virtual" command. Creates one underlay VLAN and validates the communication
Below are the configurations used
Spine1
SPINE01#sh run
hostname SPINE01
interface Ethernet1
no switchport
ip address 10.10.1.1/24
interface Ethernet2
no switchport
ip address 10.10.2.1/24
interface Ethernet3
no switchport
ip address 10.10.3.1/24
ip routing
router bgp 100
maximum-paths 2 ecmp 2
neighbor 10.10.1.2 remote-as 201
neighbor 10.10.1.2 maximum-routes 12000
neighbor 10.10.2.2 remote-as 202
neighbor 10.10.2.2 maximum-routes 12000
neighbor 10.10.3.2 remote-as 203
neighbor 10.10.3.2 maximum-routes 12000
redistribute connected
SPINE01#
Spine2
SPINE02#sh run
hostname SPINE02
interface Ethernet1
no switchport
ip address 20.20.1.1/24
interface Ethernet2
no switchport
ip address 20.20.2.1/24
interface Ethernet3
no switchport
ip address 20.20.3.1/24
ip routing
router bgp 100
maximum-paths 2 ecmp 2
neighbor 20.20.1.2 remote-as 201
neighbor 20.20.1.2 maximum-routes 12000
neighbor 20.20.2.2 remote-as 202
neighbor 20.20.2.2 maximum-routes 12000
neighbor 20.20.3.2 remote-as 203
neighbor 20.20.3.2 maximum-routes 12000
redistribute connected
SPINE02#
Leaf01
LEAF01#sh running-config
hostname LEAF01
vlan 31,41
interface Ethernet1
no switchport
ip address 10.10.1.2/24
interface Ethernet2
no switchport
ip address 20.20.1.2/24
interface Ethernet3
switchport access vlan 31
interface Ethernet4
switchport access vlan 41
interface Loopback1
ip address 101.1.1.1/24
interface Vlan31
ip address virtual 31.1.1.254/24
interface Vlan41
ip address virtual 41.1.1.254/24
interface Vxlan1
vxlan source-interface Loopback1
vxlan udp-port 4789
vxlan vlan 31 vni 3311
vxlan vlan 41 vni 4411
vxlan flood vtep 102.1.1.1 103.1.1.1
ip routing
router bgp 201
maximum-paths 2 ecmp 2
neighbor 10.10.1.1 remote-as 100
neighbor 10.10.1.1 maximum-routes 12000
neighbor 20.20.1.1 remote-as 100
neighbor 20.20.1.1 maximum-routes 12000
redistribute connected
LEAF01#
Leaf2
LEAF02#sh running-config
hostname LEAF02
vlan 32,41
interface Ethernet1
no switchport
ip address 10.10.2.2/24
interface Ethernet2
no switchport
ip address 20.20.2.2/24
interface Ethernet3
switchport access vlan 32
interface Ethernet4
switchport access vlan 41
interface Loopback1
ip address 102.1.1.1/24
interface Vlan32
ip address virtual 31.1.1.254/24
interface Vlan41
ip address virtual 41.1.1.254/24
interface Vxlan1
vxlan source-interface Loopback1
vxlan udp-port 4789
vxlan vlan 32 vni 3311
vxlan vlan 41 vni 4411
vxlan flood vtep 101.1.1.1 103.1.1.1
ip routing
router bgp 202
maximum-paths 2 ecmp 2
neighbor 10.10.2.1 remote-as 100
neighbor 10.10.2.1 maximum-routes 12000
neighbor 20.20.2.1 remote-as 100
neighbor 20.20.2.1 maximum-routes 12000
redistribute connected
LEAF02#
Leaf3
LEAF03#sh running-config
hostname LEAF03
vlan 51
interface Ethernet1
no switchport
ip address 10.10.3.2/24
interface Ethernet2
no switchport
ip address 20.20.3.2/24
interface Ethernet3
switchport access vlan 51
interface Ethernet4
switchport access vlan 51
interface Loopback1
ip address 103.1.1.1/24
interface Vlan51
ip address 51.1.1.254/24
interface Vxlan1
vxlan source-interface Loopback1
vxlan udp-port 4789
vxlan vlan 31 vni 3311
vxlan vlan 41 vni 4411
vxlan flood vtep 101.1.1.1 102.1.1.1
ip routing
router bgp 203
maximum-paths 2 ecmp 2
neighbor 10.10.3.1 remote-as 100
neighbor 10.10.3.1 maximum-routes 12000
neighbor 20.20.3.1 remote-as 100
neighbor 20.20.3.1 maximum-routes 12000
redistribute connected
LEAF03#
#VXLANconfig
#VXLANBasics
#VXLANBGPECMP
