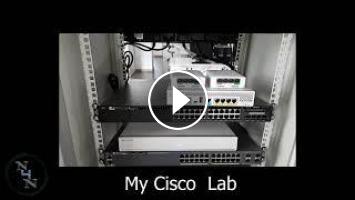

My Cisco LAB

94 Views
Published
This is my Work Place . we have user base of 600+ , having multile buildings connected with OFC , spreaded in more than 50 acres of area.

Security (Firewall) Environment:

Fortinet 600D Firewall in HA .
Fortinet Fortianalyzer
FortiManager5



Network Environment:
Cisco Nexus Switch 9K in CORE Layer
Cisco Nexus Switch 3K in Distribution Layer
Cisco 2960 Switch in Access Layer.

Virtual Environment ( Hypervisors)

Vmware ESXi host 6.5
Vcenter 6.5
Nutanix 1365 G5 SERVER ( 100 CORE Xeon Processor , 720GB RAM , 10 TB Storage (SDD & SCSI)
CISCO UCS SERVER.




Wireless (WI-FI) Environment:
Cisco WLC 5520
Access-Point 2811i

Voice Environmet :
Cisco 4300 Routers( VOice Gateways)
Cisco CUCM
Cisco IP Phones.
